愛普生LVDS晶振,SG2016VGN振蕩器,X1G0061110002,6G路由器晶振

頻率：156.25MHZ

尺寸：2.0*1.6mm

愛普生LVDS晶振,SG2016VGN振蕩器,X1G0061110002,6G路由器晶振，尺寸為2.0*1.6mm，頻率為156.25MHZ，輸出邏輯LVDS，差分晶振LVDS，LVDS差分晶體振蕩器，OSC差分晶振，有源差分晶振，石英差分振蕩器，低電壓差分晶振，低耗能差分晶振，6G應用差分晶振，6G網絡設備差分晶振，6G將使網絡通信流量呈指數級增長。6G通信網絡要求高速寬頻帶，同時最大限度地減少噪音。這將實現與高頻率，低抖動用于通信設備的參考時鐘，其中將使用小尺寸光模塊。
SG2016VGN/SG2520VGN貼片差分晶振是非常受歡迎的SG3225VEN系列的下一代產品具有廣泛的可用頻率范圍，低抖動和改進的頻率容限的功能組合由于在更小的封裝中使用了帶有溫度補償的內部設計IC，因此性能更好。產品非常適合用于網絡設備(路由器、交換機、光模塊等)，數據中心，測試和測量設備，工廠自動化，高速轉換器，如ADC和DAC等應用程序.愛普生LVDS晶振,SG2016VGN振蕩器,X1G0061110002,6G路由器晶振.
訂購熱線：86-0755-27838351
QQ咨詢 點擊這里給我發消息

1

愛普生LVDS晶振,SG2016VGN振蕩器,X1G0061110002,6G路由器晶振，尺寸為2.0*1.6mm，頻率為156.25MHZ，輸出邏輯LVDS，差分晶振LVDS，LVDS差分晶體振蕩器，OSC差分晶振，有源差分晶振，石英差分振蕩器，低電壓差分晶振，低耗能差分晶振，6G應用差分晶振，6G網絡設備差分晶振，6G將使網絡通信流量呈指數級增長。6G通信網絡要求高速寬頻帶，同時最大限度地減少噪音。這將實現與高頻率，低抖動用于通信設備的參考時鐘，其中將使用小尺寸光模塊。
SG2016VGN/SG2520VGN貼片差分晶振是非常受歡迎的SG3225VEN系列的下一代產品具有廣泛的可用頻率范圍，低抖動和改進的頻率容限的功能組合由于在更小的封裝中使用了帶有溫度補償的內部設計IC，因此性能更好。產品非常適合用于網絡設備(路由器、交換機、光模塊等)，數據中心，測試和測量設備，工廠自動化，高速轉換器，如ADC和DAC等應用程序.愛普生LVDS晶振,SG2016VGN振蕩器,X1G0061110002,6G路由器晶振.

2

愛普生LVDS晶振,SG2016VGN振蕩器,X1G0061110002,6G路由器晶振     參數表

Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Maximum supply voltage VCC -0.3 - 4.0 V
Input voltage Vin -0.3 - VCC + 0.5 V        一一
OE/ST terminal
Storage temperature range T_stg -55 - +125 °C
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Supply voltage VCC 1.71 1.8 1.89 V Suffix: E, Output option: A or C
2.375 2.5 2.625 V Suffix: D
3.135 3.3 3.465 V Suffix: C
Supply voltage GND 0.0 0.0 0.0 V
Operating temperature range T_use -40 +25 +85 °C Suffix: G
-40 +25 +105 °C Suffix: H
LVDS load condition L_LVDS 100 Ω
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Output frequency *1 fo

156.25 MHz
Frequency tolerance *2 f_tol -25 - +25 ×10-6 Suffix: D
-50 - +50 ×10-6 Suffix: J
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Startup time t_str - - 10 ms t = 0 at 90 % VCC
Current consumption ICC - - 25 mA Output option: A, fo < 212 MHz
VCC  = 2.5 V, 3.3 V Typ.
- - 28 mA Output option: A, fo ≥ 212 MHz
VCC  = 2.5 V, 3.3 V Typ.
- - 30 mA Output option: B, fo < 212 MHz
VCC  = 2.5 V, 3.3 V Typ.
- - 35 mA Output option: B, fo ≥ 212 MHz
VCC  = 2.5 V, 3.3 V Typ.
- - 25 mA Output option: C, fo < 212 MHz
VCC  = 2.5 V, 3.3 V Typ.
- - 28 mA Output option: C,
212 MHz ≤ fo < 392 MHz
VCC  = 2.5 V, 3.3 V Typ.
- - 30 mA Output option: C, fo ≥ 392 MHz
VCC  = 2.5 V, 3.3 V Typ.
- - 25 mA Output option: A or C
VCC  = 1.8 V Typ.
Disable current I_dis - - 20 mA OE = GND
Stand-by current I_std - - 30 μA  = GND, T_use Max. = +85 °C
- - 60 μA  = GND, T_use Max. = +105 °C
Rise time / Fall time tr / tf - - 0.35 ns 20 % - 80 % of VSW
Symmetry SYM 45 50 55 % At output crossing point
Output voltage VOD 250 - 450 mV Output option: A
400 - 800 mV Output option: B
Not available for VCC  = 1.8 V Typ.
300 - 600 mV Output option: C
dVOD - - 50 mV |VOD1 - VOD2 |
VOS 1.15 - 1.35 V VCC = 2.5 V, 3.3 V Typ.
0.65 - 0.85 V VCC = 1.8 V Typ.
dVOS - - 50 mV |VOS1 - VOS2 |
Differential swing VSW 500 - 900 mV Output option: A
800 - 1 600 mV Output option: B
Not available for VCC  = 1.8 V Typ.
600 - 1 200 mV Output option: C
Input voltage VIH 70 % VCC - - V OE/    terminal
VIL - - 30 % VCC V
Output disable time (OE) tstp_oe - - 100 ns OE terminal HIGH → LOW
Output disable time (ST) tstp_st - - 100 ns  terminal HIGH → LOW
Output enable time (OE) tsta_oe - - 500 ns OE terminal LOW → HIGH
Output enable time (ST) tsta_st - - 10 ms  terminal LOW → HIGH
Phase jitter
VCC = 2.5 V, 3.3 V Typ.
Offset frequency
   fo < 50 MHz; 12 kHz to 5 MHz
   fo ≥ 50 MHz: 12 kHz to 20 MHz 		tPJ - - 250 fs fo < 100 MHz
- - 100 fs 100 MHz ≤ fo ≤ 156 MHz
- - 60 fs 156 MHz < fo ≤ 212 MHz
- - 50 fs fo > 212 MHz
Phase jitter
VCC = 1.8 V Typ.
Offset frequency
   fo < 50 MHz: 12 kHz to 5 MHz
   fo ≥ 50 MHz: 12 kHz to 20 MHz 		- - 400 fs fo < 100 MHz
- - 130 fs 100 MHz ≤ fo ≤ 156 MHz
- - 70 fs 156 MHz < fo ≤ 212 MHz
- - 60 fs fo > 212 MHz

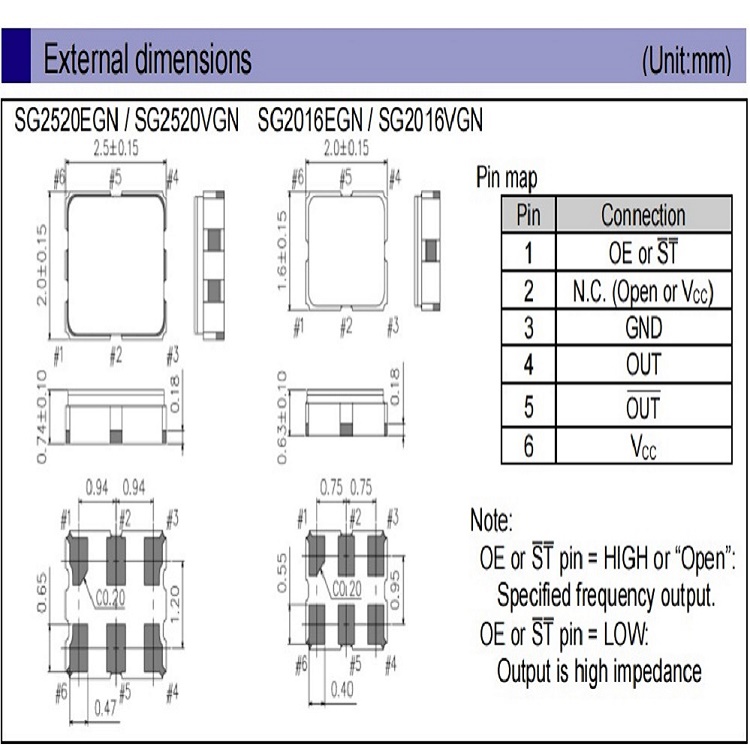

3愛普生LVDS晶振,SG2016VGN振蕩器,X1G0061110002,6G路由器晶振    尺寸圖SG2016EGN，SG2016VGN,SG2520EGN,SG2520VGN,2016,2520

產品特性：

有源晶體振蕩器(SPXO)

頻率范圍(fo): 25MHz至500MHz

輸出:LVDS

電源電壓:1.8 V型。/ 2.5 V/ 3.3V類型

工作溫度:-40℃~ +105℃

低相位抖動:38fs(fo = 156.25MHz)SG2016VGN SG2520VGN 1

更多相關日本愛普生晶振型號

編碼 晶振廠家 型號 頻率 尺寸 輸出方式 電源電壓 工作溫度
X1G0042410001 愛普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410002 愛普生晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410004 愛普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410005 愛普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410006 愛普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410007 愛普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410008 愛普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410009 愛普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410010 愛普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410011 愛普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410012 愛普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410014 愛普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410015 愛普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410016 愛普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410017 愛普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410020 愛普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410021 愛普生晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410023 愛普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410024 愛普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410025 愛普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410026 愛普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410027 愛普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410028 愛普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410029 愛普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410030 愛普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410031 愛普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410033 愛普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410034 愛普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410035 愛普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410036 愛普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042410039 愛普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410040 愛普生晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410042 愛普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410043 愛普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410044 愛普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410045 愛普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410046 愛普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410047 愛普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410048 愛普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410049 愛普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410050 愛普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410052 愛普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410053 愛普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410054 愛普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410055 愛普生晶振 SG3225VAN 161.132800 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410058 愛普生晶振 SG3225VAN 125.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410059 愛普生晶振 SG3225VAN 125.006250 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410061 愛普生晶振 SG3225VAN 100.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410062 愛普生晶振 SG3225VAN 200.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410063 愛普生晶振 SG3225VAN 400.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410064 愛普生晶振 SG3225VAN 106.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410065 愛普生晶振 SG3225VAN 212.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410066 愛普生晶振 SG3225VAN 74.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410067 愛普生晶振 SG3225VAN 148.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410068 愛普生晶振 SG3225VAN 75.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410069 愛普生晶振 SG3225VAN 150.000000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410071 愛普生晶振 SG3225VAN 156.250000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410072 愛普生晶振 SG3225VAN 312.500000 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042410073 愛普生晶振 SG3225VAN 312.515625 MHz 3.20 x 2.50 x 1.20 mm LVDS 2.250 to 3.630 V -20 to 70 °C
