全球首家上百萬進口晶振代理商

深圳市康華爾電子有限公司

國際進口晶振品牌首選康華爾

首頁 加高晶振

6G無線通信晶振,加高陶瓷晶振,XSHO25000FC1H-H,HSX530G無源晶體

6G無線通信晶振,加高陶瓷晶振,XSHO25000FC1H-H,HSX530G無源晶體6G無線通信晶振,加高陶瓷晶振,XSHO25000FC1H-H,HSX530G無源晶體

產品簡介

6G無線通信晶振,加高陶瓷晶振,XSHO25000FC1H-H,HSX530G無源晶體，尺寸5.0x3.2mm，頻率25MHZ，HELE無源晶振，臺灣貼片晶振，5032mm貼片晶體，陶瓷諧振器，水晶振動子，兩腳貼片晶振，SMD無源晶振，綠色環保晶振，低功耗無源晶振，低損耗貼片晶振，高精度貼片晶振，高性能無源晶振，高品質貼片晶振，無線通信專用貼片晶振，智能手機專用晶振，可穿戴設備專用晶振，物聯網專用晶振，數碼相機專用晶振，視聽設備晶振，輕薄型晶振，產品具有高精度高品質的特點。

SMD晶振產品比較常用于無線通信應用，智能手機，可穿戴設備，物聯網，數碼相機，視聽設備等，還可以廣泛用于數字視頻，測試設備等領域.6G無線通信晶振,加高陶瓷晶振,XSHO25000FC1H-H,HSX530G無源晶體.

產品詳情

1

6G無線通信晶振,加高陶瓷晶振,XSHO25000FC1H-H,HSX530G無源晶體，尺寸5.0x3.2mm，頻率25MHZ，HELE無源晶振，臺灣貼片晶振，5032mm貼片晶體，陶瓷諧振器，水晶振動子，兩腳貼片晶振，SMD無源晶振，綠色環保晶振，低功耗無源晶振，低損耗貼片晶振，高精度貼片晶振，高性能無源晶振，高品質貼片晶振，無線通信專用貼片晶振，智能手機專用晶振，可穿戴設備專用晶振，物聯網專用晶振，數碼相機專用晶振，視聽設備晶振，輕薄型晶振，產品具有高精度高品質的特點。

SMD晶振產品比較常用于無線通信應用，智能手機，可穿戴設備，物聯網，數碼相機，視聽設備等，還可以廣泛用于數字視頻，測試設備等領域.6G無線通信晶振,加高陶瓷晶振,XSHO25000FC1H-H,HSX530G無源晶體.

2

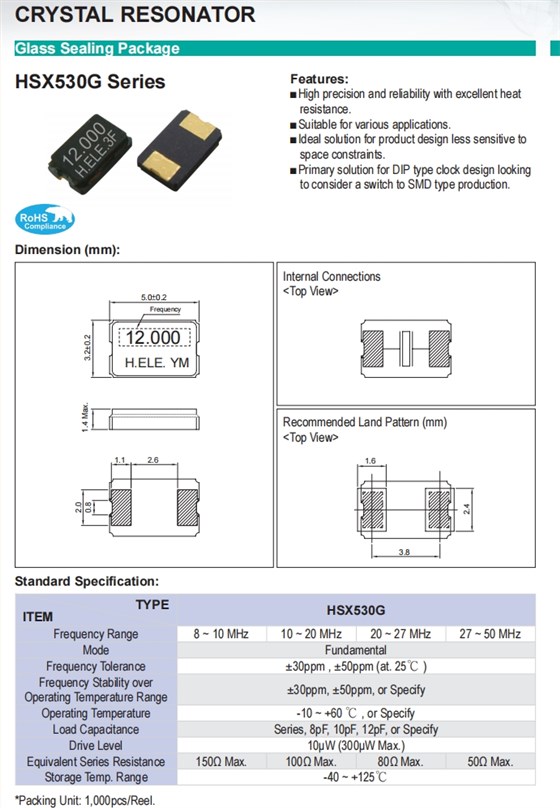

6G無線通信晶振,加高陶瓷晶振,XSHO25000FC1H-H,HSX530G無源晶體參數表

TYPE
ITEM 		HSX530G
Frequency Range 8 ~ 10 MHz 10 ~ 20 MHz 20 ~ 27 MHz 27 ~ 50 MHz
Mode Fundamental
Frequency Tolerance ±30ppm , ±50ppm (at. 25℃)
Frequency Stability over
Operating Temperature Range 		±30ppm, ±50ppm, or Specify
Operating Temperature -10 ~ +60℃, or Specify
Load Capacitance Series, 8pF, 10pF, 12pF, or Specify
Drive Level 10μW (300μW Max.)
Equivalent Series Resistance 150Ω Max. 100Ω Max. 80Ω Max. 50Ω Max.
Storage Temp. Range -40 ~ +125℃

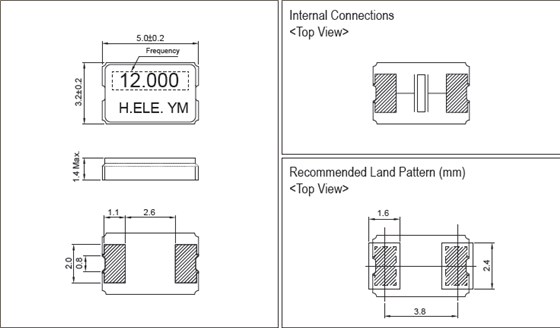

36G無線通信晶振,加高陶瓷晶振,XSHO25000FC1H-H,HSX530G無源晶體 尺寸圖

HSX530G 5032

陶瓷晶體產品特性：

非常低的老化

優異的耐熱性和抗沖擊性

頻率范圍8MHz-50MHz（基本模式）

HSX530G 1

更多相關HELE加高晶振型號

編碼 Series 晶振廠家 描述 頻率 頻率穩定性
X2C025000DZ1H-U HSX211S HELE加高晶振 HSX211S/25MHZ/6PF/20PPM/20PPM@-3 25.000MHZ ±20ppm
X2C032000BA1H-HZ HSX211S HELE加高晶振 HSX211S/32MHZ/10PF/10PPM/15PPM@- 32.000MHZ ±15ppm
X2C024000DZ1H-HU HSX211S HELE加高晶振 HSX211S/24MHZ/6PF/20PPM/20PPM@-3 24.000MHZ ±20ppm
X2C016000B81H-R HSX211S HELE加高晶振 HSX211S/16MHZ/8PF/10PPM/10PPM@-2 16.000MHZ ±10ppm
X2C026000BC1H-Z HSX211S HELE加高晶振 HSX211S/26MHZ/12PF/10PPM/10PPM@- 26.000MHZ ±10ppm
X2C048000L71HH-CEHZ HSX211S HELE加高晶振 HSX211S/48MHZ/11.1PF/8PPM/14PPM/ 48.000MHZ ±14ppm
X12A040000BZ1H-HZ HSX1210A HELE加高晶振 HSX1210A/40MHZ/6PF/10PPM/12PPM/- 40.000MHZ ±10ppm
X12A032000B81H-HZ HSX1210A HELE加高晶振 HSX1210A/32MHZ/8PF/10PPM/10PPM/- 32.000MHZ ±10ppm
X2C048000L71HA-CEHZ HSX211S-AU HELE加高晶振 SMD Crystal Resonators 48MHz ±8ppm SMD-2016_4P RoHS 48.000MHZ ±8ppm
X2C026000B91H-V HSX211S HELE加高晶振 SMD Crystal Resonators 26MHz ±10ppm SMD-2016_4P RoHS 26.000MHZ ±10ppm
X5H008000FC1H-X HSX530G HELE加高晶振 SMD Crystal Resonators 8MHz ±30ppm SMD-5032_2P RoHS 8.000MHZ ±30ppm
X5H027000DA1H-W HSX530G HELE加高晶振 SMD Crystal Resonators 27MHz ±20ppm SMD-5032_2P RoHS 27.000MHZ ±20ppm
X5H01431AFK1H-X HSX530G HELE加高晶振 SMD Crystal Resonators SMD_5032-2P RoHS 14.31818MHZ -
X5H025000FK1H-X HSX530G HELE加高晶振 SMD Crystal Resonators SMD_5032-2P RoHS 25.000MHZ -
X5H008000FF1H HSX530G HELE加高晶振 SMD Crystal Resonators SMD-5032-2P RoHS 8.000MHZ -
X5H012288FI1H HSX530G HELE加高晶振 SMD Crystal Resonators 12.288MHz ±30ppm SMD-5032_2P RoHS 12.288MHZ ±30ppm
X5H008000IK1H-H HSX530G HELE加高晶振 SMD Crystal Resonators SMD_5032-2P RoHS 8.000MHZ -
X2C024000BA1H HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD-2016 RoHS 24.000MHZ ±10ppm
X2C024000B71H-V HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 24.000MHZ ±10ppm
X2C024000FA1H-X HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 24.000MHZ 30PPM
X2C016000B81H-HPU HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD-2016 RoHS 16.000MHZ 10PPM
X2C024000B91H-HZ HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 24.000MHZ 10PPM
X2C037400BG1H-U HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD-2016 RoHS 37.400MHZ 10PPM
X2C027120FA1H-HV HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 27.120MHZ ±30ppm
X2C040000B91HA-Z HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD-2016 RoHS 40.000MHZ 10PPM
X2C016000B91H-R HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 16.000MHZ 10PPM
X2C032000BA1HA-U HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 32.000MHZ 10PPM
X2C048000L71H-CEHZ HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 48.000MHZ ±8ppm
X2C032000BC1H-R HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 32.000MHZ 10PPM
X2C038400BA1H-HZ HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD-2016 RoHS 38.400MHZ 10PPM
X2C032000B81H-HS HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 32.000MHZ ±10ppm
X1H008000DC1H-U HSX531S HELE加高晶振 SMD Crystal Resonators 8MHz ±20ppm SMD_5032-4P RoHS 8.000MHZ ±20ppm
X2C026000B71H-HZ HSX211S-AU HELE加高晶振 SMD Crystal Resonators 26MHz ±10ppm SMD-2016_4P RoHS 26.000MHZ ±10ppm
X2C048000BA1H-HZ HSX211S-AU HELE加高晶振 SMD Crystal Resonators SMD,2.0x1.6mm RoHS 48.000MHZ ±10ppm
X2CO48000B71H-CEHZ HSX211S-AU HELE加高晶振 48.000MHZ
X2CO48000R71HA-CEHZ HSX211S-AU HELE加高晶振 48.000MHZ
X2CO40000BD1H-HZ HSX211S-AU HELE加高晶振 40.000MHZ
X2CO27120FC1H-HX HSX211S-AU HELE加高晶振 27.120MHZ
XSHO25000FC1H-H HSX530G HELE加高晶振 25.000MHZ
XSHO12000FG1H-X HSX530G HELE加高晶振 12.000MHZ
X5H024576FI1HA-X HSX530G HELE加高晶振 24.576MHZ
X1H01431AFK1H-HX HSX531S HELE加高晶振 14.31818MHZ 30PPM
X6S007600BI1H-X HSX631S HELE加高晶振 7.6.000MHZ 10PPM
X1H024576DK1H-X HSX531S HELE加高晶振 24.576MHZ
X1H012000BC1H-X HSX531S HELE加高晶振 12.000MHZ
X5H048000FQ1H-X HSX530G HELE加高晶振 48.000MHZ
X1H022118DW1H HSX531S HELE加高晶振 22.1184MHZ
X2C016000BC1H-Z HSX211S HELE加高晶振 16.000MHZ ±10PPM
X2C025000BC1H-U HSX211S HELE加高晶振 25.000MHZ ±10ppm
X2C037400BG1HA-U HSX211S HELE加高晶振 37.4.000MHZ ±10ppm

5
