產品簡介

XO-53000H無線模塊晶振,XO-53331HST-LF-45.000MHz,KVG低電壓振蕩器，尺寸2.5x2.0mm，頻率45MHZ德國進口晶振，KVG有源晶振，2520mm有源晶振，OSC貼片晶振，石英有源晶振，石英晶體振蕩器，SMD振蕩器，有源晶體振蕩器，石英振蕩子，時鐘振蕩器，無線模塊有源晶振，室外基站有源晶振，無線路由器有源晶振，小型設備有源晶振，北斗定位有源晶振，測試設備有源晶振，儀器儀表有源晶振，低電壓有源晶振，低抖動有源晶振，低損耗有源晶振，低功耗有源晶振，高性能有源晶振，高品質有源晶振，低相噪有源晶振，具有高性能低功耗的特點。

OSC晶振產品特別適合用于無線模塊，室外基站，無線路由器，小型設備，北斗定位，測試設備，儀器儀表等領域。XO-53000H無線模塊晶振,XO-53331HST-LF-45.000MHz,KVG低電壓振蕩器.

產品詳情

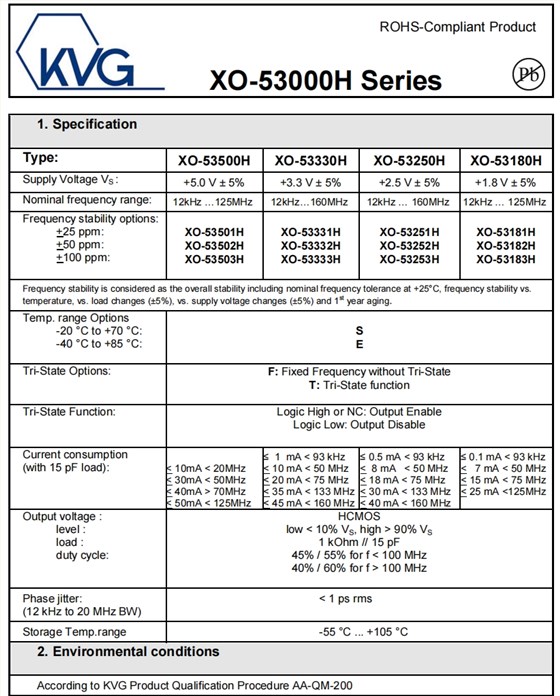

XO-53000H無線模塊晶振,XO-53331HST-LF-45.000MHz,KVG低電壓振蕩器 參數表

Type:

XO-53500H

XO-53330H

XO-53250H

XO-53180H

Supply Voltage VS:

+5.0 V ± 5%

+3.3 V ± 5%

+2.5 V ± 5%

+1.8 V ± 5%

Nominal frequency range:

12kHz …125MHz

12kHz…160MHz

12kHz …160MHz

12kHz …125MHz

Frequency stability options:
+25 ppm:
+50 ppm:
+100 ppm:

XO-53501H
XO-53502H
XO-53503H

XO-53331H
XO-53332H
XO-53333H

XO-53251H
XO-53252H
XO-53253H

XO-53181H
XO-53182H
XO-53183H

Frequency stability is considered as the overall stability including nominal frequency tolerance at +25°C, frequency stability vs.
temperature, vs. load changes (±5%), vs. supply voltage changes (±5%) and 1styear aging.

Temp. range Options
-20 °C to +70 °C:
-40 °C to +85 °C:

S
E

Tri-State Options:

F:Fixed Frequency without Tri-State
T:Tri-State function

Tri-State Function:

Logic High or NC: Output Enable
Logic Low: Output Disable

Current consumption
(with 15 pF load):

<10mA < 20MHz
<30mA < 50MHz
<40mA > 70MHz
< 50mA < 125MHz

≤1mA < 93 kHz
<10 mA < 50 MHz
<20 mA < 75 MHz
<35 mA < 133 MHz
< 45 mA < 160 MHz

≤ 0.5 mA < 93 kHz
<8 mA< 50 MHz
<18 mA < 75 MHz
<30 mA < 133 MHz
< 40 mA < 160 MHz

≤ 0.1 mA < 93 kHz
<7 mA < 50 MHz
<15 mA < 75 MHz
<25 mA <125MHz

Output voltage :
level :
load :
duty cycle:
