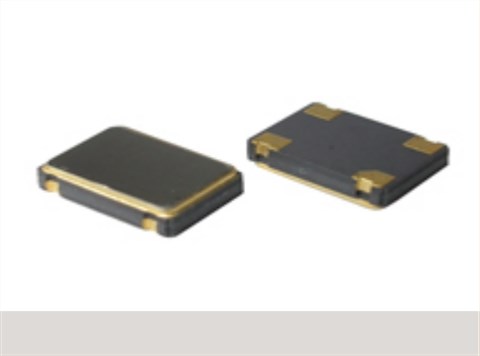

CMOS振蕩器,3225mm,SX3CG-18K10E-52MHz,FCD-Tech低相噪晶振,52MHZ

CMOS振蕩器,3225mm,SX3CG-18K10E-52MHz,FCD-Tech低相噪晶振,52MHZCMOS振蕩器,3225mm,SX3CG-18K10E-52MHz,FCD-Tech低相噪晶振,52MHZ

產品簡介

CMOS振蕩器,3225mm,SX3CG-18K10E-52MHz,FCD-Tech低相噪晶振,52MHZ,荷蘭進口晶振,FCD-Tech有源晶振,有源晶體振蕩器,四腳有源晶振,石英有源晶振,OSC貼片晶振,52MHZ振蕩器,3225mm小體積晶振,尺寸3.2x2.5mm,頻率52MHZ,電壓1.8V,輸出CMOS,低電壓晶振,低相位晶振,低相噪晶振,無線局域網晶振,網絡晶振,移動通信晶振,智能家電晶振.

產品詳情

1

CMOS振蕩器,3225mm,SX3CG-18K10E-52MHz,FCD-Tech低相噪晶振,52MHZ,荷蘭進口晶振,FCD-Tech有源晶振,有源晶體振蕩器,四腳有源晶振,石英有源晶振,OSC貼片晶振,52MHZ振蕩器,3225mm小體積晶振,尺寸3.2x2.5mm,頻率52MHZ,電壓1.8V,輸出CMOS,低電壓晶振,低相位晶振,低相噪晶振,無線局域網晶振,網絡晶振,移動通信晶振,智能家電晶振.

CMOS振蕩器,3225mm,SX3CG-18K10E-52MHz,FCD-Tech低相噪晶振,52MHZ特點:

超小型封裝SPXO晶振

提供工業級緊密溫度穩定性（+-10ppm-40/+85°C）

低相位噪聲

應用：無線局域網，家庭網絡，移動通信.

2

CMOS振蕩器,3225mm,SX3CG-18K10E-52MHz,FCD-Tech低相噪晶振,52MHZ 參數表

Item Specification
Frequency Range 52.0 MHz
Output Logic CMOS
Overall Frequency Stability * ± 10 ppm~± 20 ppm (see options)
Operating Temperature Range -40°C~+85°C
Supply Voltage Vdd +1.8V±5%+2.5V±5%+2.8V±5% +3.0V±5% +3.3V±5%
Supply Current Idd 7 mA max.
Output Level VOH ≥ 0.9 Vdd VOL ≤ 0.1 Vdd
Output Load 15 pF
Symmetry 45 / 55 %
Rise Time / Fall Time 3~8 ns
Tri-state function pin #1 = high or open
pin #1 = low 		pin #3=oscillation
pin #3=high impedance
Start-up Time 10 ms max.
RMS Jitter
(12 kHz to 20 MHz band) 		1 ps max.
Phase Noise
Packing Unit 3000pcs / reel
Soldering Condition 260°C , 10 sec x2 max

3

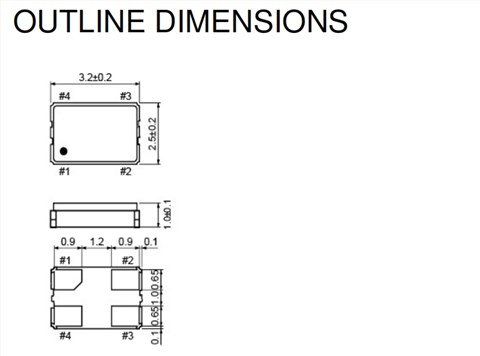

CMOS振蕩器,3225mm,SX3CG-18K10E-52MHz,FCD-Tech低相噪晶振,52MHZ尺寸圖

SX3CG

SX3CG 1

SX3CG 25
