CMOS,FCD-TechCrystal,SX2K-18K20E-32.768kHz,2520mm,32.768K時鐘振蕩器,荷蘭進口晶振,有源晶振,32.768K時鐘晶振,有源貼片晶振,OSC晶振,2520石英振蕩器,四腳有源晶振,CMOS輸出晶振,尺寸2.5x2.0mm,頻率32.768KHZ,電壓1.8V,頻率穩(wěn)定性20ppm,輸出CMOS,低功耗晶振,低電壓晶振,高品質晶振,高質量晶振,無線局域網晶振,藍牙晶振,移動通信晶振,娛樂設備晶振.
CMOS,FCD-TechCrystal,SX2K-18K20E-32.768kHz,2520mm,32.768K時鐘振蕩器特點:
OscillatorCrystal超小型封裝
低電流消耗
擴展可用的溫度范圍
應用：無線局域網、藍牙和移動通信.
CMOS,FCD-TechCrystal,SX2K-18K20E-32.768kHz,2520mm,32.768K時鐘振蕩器 參數表
|
Item Frequency Range |
Speci?cation 32.768 kHz |
|||||||||||
| Output Logic | CMOS | |||||||||||
| Overall Frequency Stability * | ± 20 ppm ~ ± 100 ppm(see options) | |||||||||||
| Operating Temperature Range | 0 ~ +70°C commercial application (see options) | |||||||||||
| -40 ~ +85°C industrial application (see options) | ||||||||||||
   +5.0V ±5%
|
||||||||||||
| Supply CurrentIdd | 1.0 mA max | 1.0 mA max | ||||||||||
  VOL ≤ 0.1 Vdd
|
||||||||||||
| Output Load | 15 pF | |||||||||||
| Symmetry | 45 / 55 % | |||||||||||
|
Rise Time / Fall TimeFr/Ff |
 6 ns max
|
|||||||||||
|
pin #3 ==>oscillation pin #3 ==>high impedance |
||||||||||||
| Start-up Time | 35 ms max. | |||||||||||
| Packing Unit | 3000pcs / reel | |||||||||||
| Soldering Condition | 260°C , 10 sec x2 max | |||||||||||

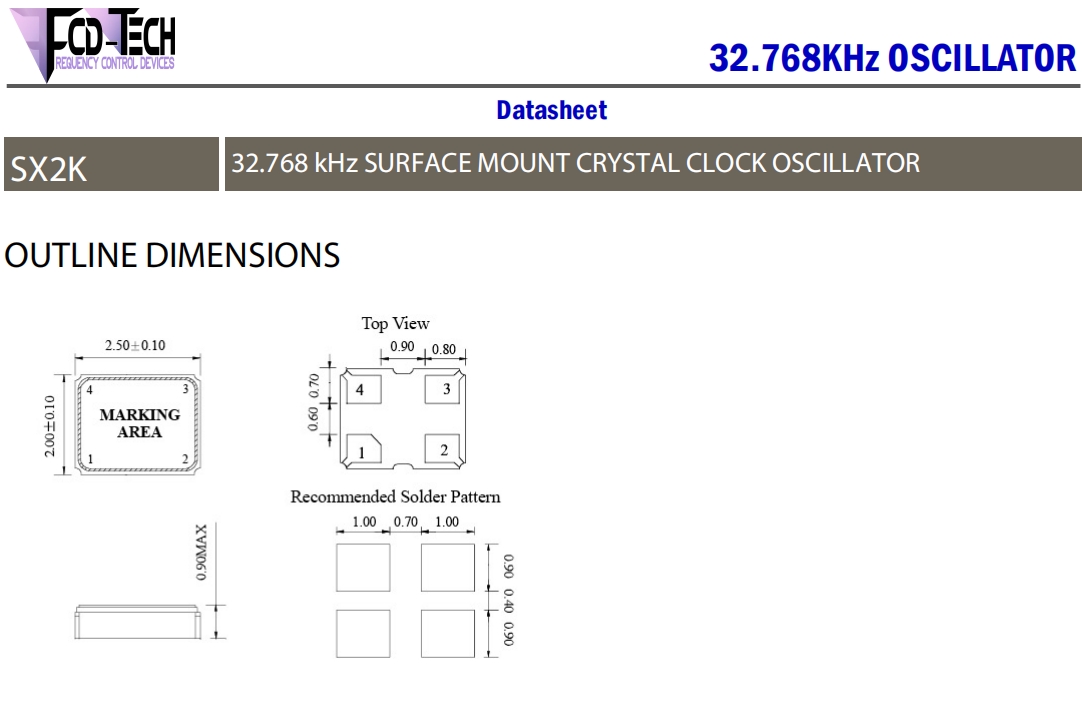

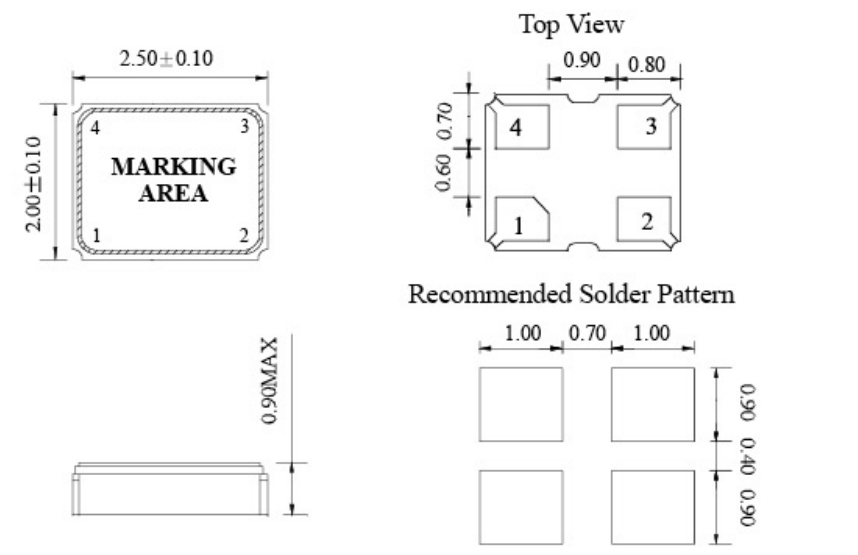

CMOS,FCD-TechCrystal,SX2K-18K20E-32.768kHz,2520mm,32.768K時鐘振蕩器尺寸圖
