F7050A‐30‐50‐D‐S‐F‐36.000MHz,7050mm,36MHZ,FCD-Tech環保晶振，尺寸7.0×5.0mm，頻率36MHZ，歐美進口晶振，FCD-Tech小封裝晶振，四腳貼片晶振，水晶振動子，石英SMD晶振，7050mm石英晶振，無源諧振器，無源晶振，貼片石英晶振，SMD晶體，低損耗晶振，低功耗晶振，低成本晶振，低耗能晶振，高性能晶振，高精度晶振，輕薄型晶振，測試測量晶振，儀器設備晶振，平板電腦晶振，移動設備晶振，視頻監控晶振，數字音頻晶振，具有良好的耐壓性能。
石英晶振產品被廣泛用于測試測量，儀器設備，平板電腦，移動設備，視頻監控，數字音頻等應用。F7050A‐30‐50‐D‐S‐F‐36.000MHz,7050mm,36MHZ,FCD-Tech環保晶振.

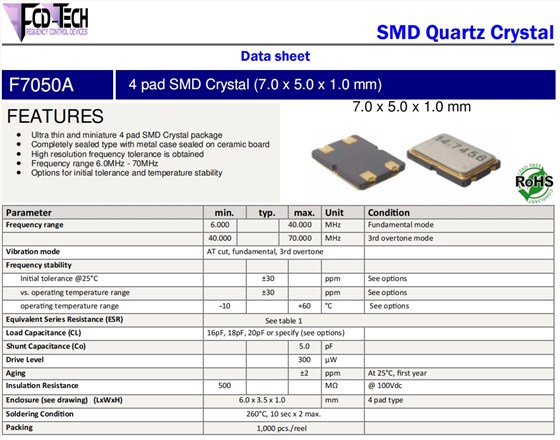

F7050A‐30‐50‐D‐S‐F‐36.000MHz,7050mm,36MHZ,FCD-Tech環保晶振 參數表
| Parameter | min. | typ. | max. | Unit | Condi?on | ||||||||||
| Frequency range |
|
36.000 |
|
MHz | Fundamental mode | ||||||||||
| 40.000 | 70.000 | MHz | 3rd overtone mode | ||||||||||||
| Vibra?on mode | AT cut, fundamental, 3rd overtone | ||||||||||||||
| Frequency stability | |||||||||||||||
| Ini?al tolerance @25°C | ±30 | ppm | See op?ons | ||||||||||||
| vs. opera?ng temperature range | ±30 | ppm | See op?ons | ||||||||||||
| opera?ng temperature range | ‐10 | +60 | °C | See op?ons | |||||||||||

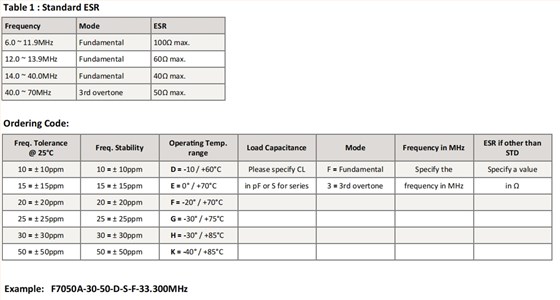

| Equivalent Series Resistance (ESR) | See table 1 | ||||||||||||||
| Load Capacitance (CL) | 16pF, 18pF, 20pF or specify (see op?ons) | ||||||||||||||
| Shunt Capacitance (Co) | 5.0 | pF | |||||||||||||
| Drive Level | 300 | µW | |||||||||||||
| Aging | ±2 | ppm | At 25°C, ?rst year | ||||||||||||
| Insula?on Resistance | 500 | M? | @ 100Vdc | ||||||||||||
| Enclosure (see drawing)(LxWxH) | 6.0 x 3.5 x 1.0 | mm | 4 pad type | ||||||||||||
| Soldering Condi?on | 260°C, 10 sec x 2 max. | ||||||||||||||
| Packing | 1,000 pcs./reel | ||||||||||||||

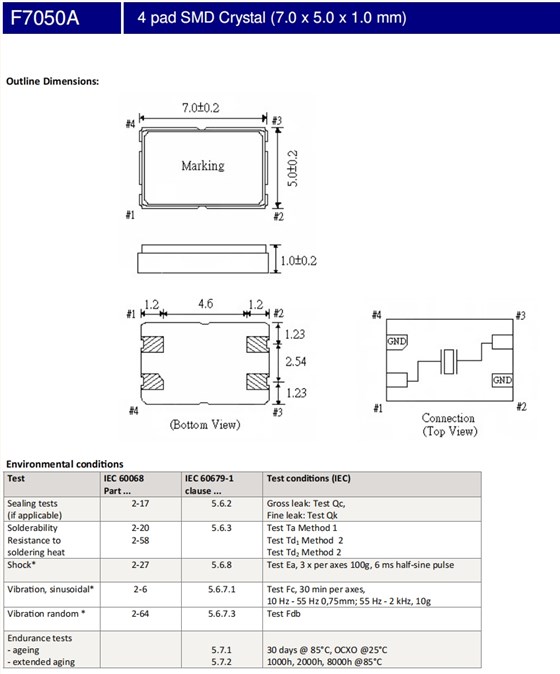

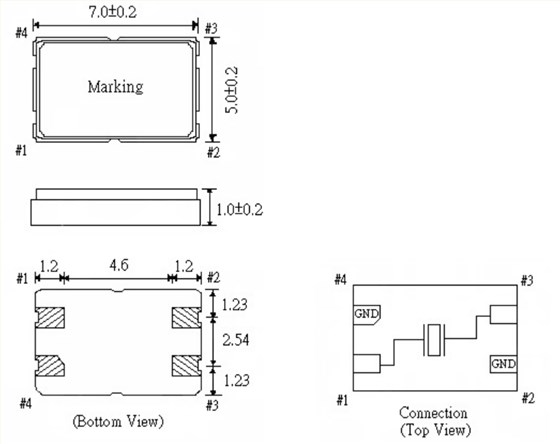

F7050A‐30‐50‐D‐S‐F‐36.000MHz,7050mm,36MHZ,FCD-Tech環保晶振尺寸圖

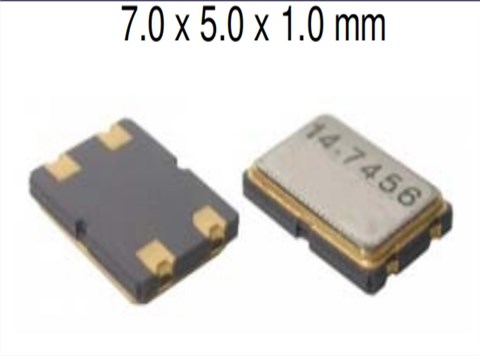

F7050A‐30‐50‐D‐S‐F‐36.000MHz,7050mm,36MHZ,FCD-Tech環保晶振
產品特點：
超薄微型4焊盤SMD晶振封裝
完全密封型，金屬外殼密封在陶瓷板上
獲得高分辨率頻率容差
頻率范圍6.0MHz-70MHz
初始公差和溫度穩定性選項
