全球首家上百萬進口晶振代理商

深圳市康華爾電子有限公司

國際進口晶振品牌首選康華爾

首頁 IDTcrystal晶振

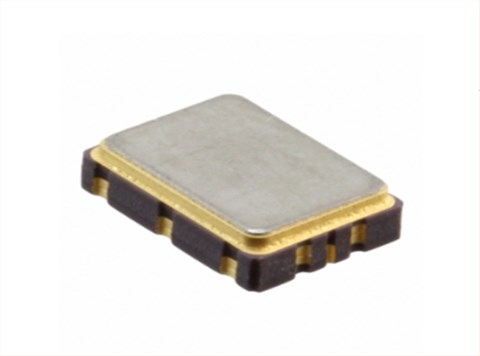

Si549低功耗晶振/549BACB000148ACG/6G發射器晶振/Skyworks有源貼片晶振

Si549低功耗晶振/549BACB000148ACG/6G發射器晶振/Skyworks有源貼片晶振Si549低功耗晶振/549BACB000148ACG/6G發射器晶振/Skyworks有源貼片晶振

產品簡介


Si549低功耗晶振/549BACB000148ACG/6G發射器晶振/Skyworks有源貼片晶振，尺寸7.0×5.0mm，頻率24.576MHZ，歐美差分晶振，進口差分晶體振蕩器，LVDS輸出晶振，高性能差分晶振，六腳差分晶振，貼片差分晶振，7050mm差分晶振，OSC有源差分晶振，有源貼片差分晶振，XO時鐘振蕩器，24.5760MHZ差分晶振，LVDS差分晶振，SMD差分晶振，低電壓差分振蕩器，低電流差分晶振，交換機差分晶振，低功耗差分晶振，藍牙模塊差分晶振，智能家居差分晶振，網絡設備差分晶振，無線應用差分晶振，通訊差分晶振，光模塊差分晶振，測量設備差分振蕩器，便攜式設備差分晶振，具有高質量低功耗的特點。

Si549 Ultra系列™ 振蕩器采用Skyworks Solutions的先進技術第四代DSPLL®技術，提供超低抖動、低相位任何輸出頻率的噪聲時鐘。該設備通過用戶編程簡單的I2C命令，提供從0.2到1500 MHz的任何頻率＜1ppb分辨率，并在整數和在其工作范圍內的分數頻率。Si549差分晶振LVDS提供了出色的可靠性和頻率穩定性以及有保證的老化性能。片上電源濾波提供業界領先的電源噪聲抑制，簡化了在噪聲系統中生成低抖動時鐘的任務使用開關模式電源。Si549具有顯著的簡化的供應鏈，使Skyworks能夠運送自定義頻率樣品在收到訂單后1-2周。Si549低功耗晶振/549BACB000148ACG/6G發射器晶振/Skyworks有源貼片晶振.


產品詳情

1

Si549低功耗晶振/549BACB000148ACG/6G發射器晶振/Skyworks有源貼片晶振，尺寸7.0×5.0mm，頻率24.576MHZ，歐美差分晶振，進口差分晶體振蕩器，LVDS輸出晶振，高性能差分晶振，六腳差分晶振，貼片差分晶振，7050mm差分晶振，OSC有源差分晶振，有源貼片差分晶振，XO時鐘振蕩器，24.5760MHZ差分晶振，LVDS差分晶振，SMD差分晶振，低電壓差分振蕩器，低電流差分晶振，交換機差分晶振，低功耗差分晶振，藍牙模塊差分晶振，智能家居差分晶振，網絡設備差分晶振，無線應用差分晶振，通訊差分晶振，光模塊差分晶振，測量設備差分振蕩器，便攜式設備差分晶振，具有高質量低功耗的特點。

Si549 Ultra系列™ 振蕩器采用Skyworks Solutions的先進技術第四代DSPLL®技術，提供超低抖動、低相位任何輸出頻率的噪聲時鐘。該設備通過用戶編程簡單的I2C命令，提供從0.2到1500 MHz的任何頻率＜1ppb分辨率，并在整數和在其工作范圍內的分數頻率。Si549差分晶振LVDS提供了出色的可靠性和頻率穩定性以及有保證的老化性能。片上電源濾波提供業界領先的電源噪聲抑制，簡化了在噪聲系統中生成低抖動時鐘的任務使用開關模式電源。Si549具有顯著的簡化的供應鏈，使Skyworks能夠運送自定義頻率樣品在收到訂單后1-2周。Si549低功耗晶振/549BACB000148ACG/6G發射器晶振/Skyworks有源貼片晶振.

2

Si549低功耗晶振/549BACB000148ACG/6G發射器晶振/Skyworks有源貼片晶振 參數表

Parameter Symbol Test Condition/Comment Min Typ Max Unit
Temperature Range TA –40 85 ºC
Frequency Range FCLK LVPECL, LVDS, CML 0.2 — 1500 MHz
HCSL 0.2 — 400 MHz
CMOS, Dual CMOS 0.2 250 MHz
Supply Voltage V DD 3.3 V 3.135 3.3 3.465 V
2.5 V 2.375 2.5 2.625 V
1.8 V 1.71 1.8 1.89 V
Supply Current IDD LVPECL (output enabled) 107 153 mA
LVDS/CML (output enabled) — 83 121 mA
HCSL (output enabled) 86 126 mA
HCSL-Fast (output enabled) — 94 138 mA
CMOS (output enabled) 87 127 mA
Dual CMOS (output enabled) — 92 141 mA
Tristate Hi-Z (output disabled) 73 112 mA
Temperature Stability Frequency stability Grade A –20 — 20 ppm
Frequency stability Grade B –10 10 ppm
Frequency stability Grade C –7 — 7 ppm
Total Stability1 F STAB Frequency stability Grade A –50 50 ppm
Frequency stability Grade B –25 — 25 ppm
Frequency stability Grade C –20 20 ppm
Rise/Fall Time
(20% to 80% VPP) 		TR/TF LVPECL/LVDS/CML — — 350 ps
CMOS / Dual CMOS
(CL= 5 pF) 		— 0.5 1.5 ns
HCSL, FCLK>50 MHz — — 550 ps
HCSL-Fast, FCLK>50 MHz — — 275 ps
Duty Cycle DC All formats 45 — 55 %
Output Enable (OE),
Frequency Select (FS0, FS1)2 		VIH 0.7 × VDD V
VIL — — 0.3 × VDD V
TD Output Disable Time, FCLK>10 MHz — — 3 µs
TE Output Enable Time, FCLK>10 MHz — — 20 µs
T FS Settling Time after FS Change 10 ms
Powerup Time tOSC Time from 0.9 × VDDuntil output fre-
quency (FCLK) within spec 		— — 10 ms

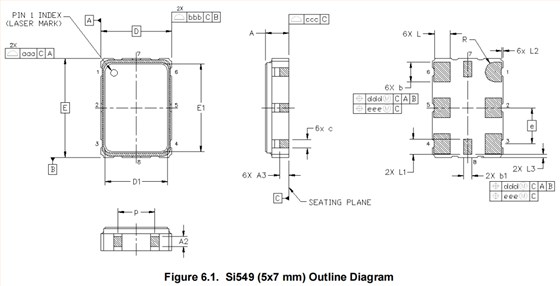

3Si549低功耗晶振/549BACB000148ACG/6G發射器晶振/Skyworks有源貼片晶振 尺寸圖

Si549 7050

OSC晶振產品特性:

I2C可編程至0.2至1500MHz，分辨率<1ppb

超低抖動：95 fs典型RMS（12kHz–20MHz）

最多配置4針可選啟動頻率

I2C接口支持100 kbps、400 kbps和1Mbps（快速模式+）

出色的PSNR和電源抗擾度：–80dBc類型

3.3 V、2.5 V和1.8 V VDD電源操作

相同的零件號

LVPECL、LVDS、CML、HCSL、CMOS和Dual CMOS輸出選項

2.5x3.2、3.2x5、5x7 mm封裝選項

樣品可用，交付周期為1-2周

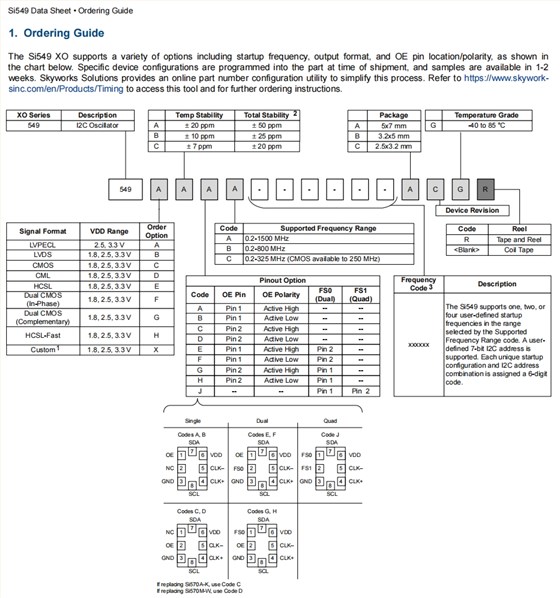

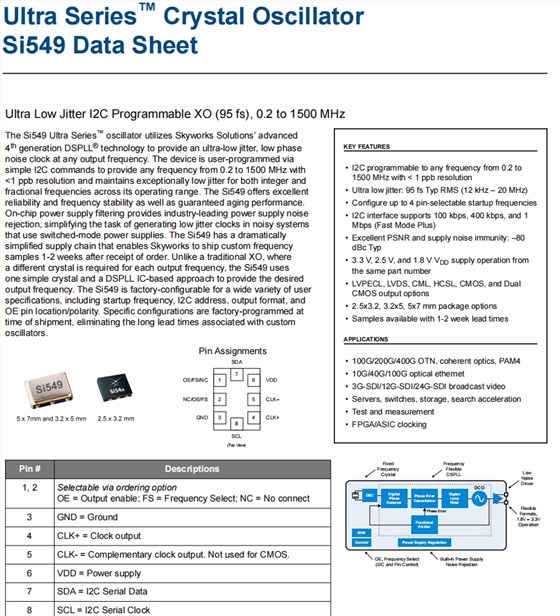

Si549 1Si549 2

更多相關Skyworks晶振型號

Mfr Part # Mfr 歐美晶振描述 Series Frequency Output
549BAAB000212BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 10 MHz LVDS
549BACB000148ACG Skyworks有源晶振 XTAL OSC XO 24.5760MHZ LVDS SMD Ultra™ Si549 24.576 MHz LVDS
549AAAC000118ACG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVPECL Ultra™ Si549 156.25 MHz LVPECL
549BCCB002128ACG Skyworks有源晶振 XTAL OSC XO 200.0000MHZ LVDS Ultra™ Si549 200 MHz LVDS
549CCCC000141ACG Skyworks有源晶振 XTAL OSC XO 56.3200MHZ CMOS SMD Ultra™ Si549 56.32 MHz CMOS
549BABA000368ACG Skyworks有源晶振 XTAL OSC XO 122.8800MHZ LVDS Ultra™ Si549 122.88 MHz LVDS
549AAAA000426ACG Skyworks有源晶振 XTAL OSC XO 145.0000MHZ LVPECL Ultra™ Si549 145 MHz LVPECL
549BAAB001589ACG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS Ultra™ Si549 125 MHz LVDS
549BBAA001968ACG Skyworks有源晶振 XTAL OSC XO 1.2000GHZ LVDS SMD Ultra™ Si549 1.2 GHz LVDS
549BAAC001741ACG Skyworks有源晶振 XTAL OSC XO 70.6560MHZ LVDS SMD Ultra™ Si549 70.656 MHz LVDS
549BAAA000112ACG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVDS SMD Ultra™ Si549 10 MHz LVDS
549AAAA000112ACG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Ultra™ Si549 10 MHz LVPECL
549BAAB000118ACG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS Ultra™ Si549 156.25 MHz LVDS
549CCAC000141ACG Skyworks有源晶振 XTAL OSC XO 56.3200MHZ CMOS SMD Ultra™ Si549 56.32 MHz CMOS
549CAAC000112ACG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Ultra™ Si549 10 MHz CMOS
549BAAA001968ACG Skyworks有源晶振 XTAL OSC XO 1.2000GHZ LVDS SMD Ultra™ Si549 1.2 GHz LVDS
549BACA001937ACG Skyworks有源晶振 XTAL OSC XO 125.0000MHZ LVDS Ultra™ Si549 125 MHz LVDS
549BACA000112ACG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVDS SMD Ultra™ Si549 10 MHz LVDS
549BCCB002127ACG Skyworks有源晶振 XTAL OSC XO 200.0000MHZ LVDS Ultra™ Si549 200 MHz LVDS
549BCBA000122ACG Skyworks有源晶振 XTAL OSC XO 1.0000GHZ LVDS SMD Ultra™ Si549 1 GHz LVDS
549CAAA000112ACG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ CMOS SMD Ultra™ Si549 10 MHz CMOS
549BACB000112ACG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVDS SMD Ultra™ Si549 10 MHz LVDS
549BCAB000112ACG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVDS SMD Ultra™ Si549 10 MHz LVDS
549BCCB002129ACG Skyworks有源晶振 XTAL OSC XO 199.0000MHZ LVDS Ultra™ Si549 199 MHz LVDS
549BCCB000126ACG Skyworks有源晶振 XTAL OSC XO 200.0000MHZ LVDS Ultra™ Si549 200 MHz LVDS
549CBAC000508ACG Skyworks有源晶振 XTAL OSC XO 25.0000MHZ CMOS SMD Ultra™ Si549 25 MHz CMOS
549DACB001619ACG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ CML SMD Ultra™ Si549 156.25 MHz CML
549ACAA000112ACG Skyworks有源晶振 XTAL OSC XO 10.0000MHZ LVPECL Ultra™ Si549 10 MHz LVPECL
549CCAC000118ACG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ CMOS Ultra™ Si549 156.25 MHz CMOS
549GCDC002122ACG Skyworks有源晶振 XTAL OSC XO 71.1350MHZ CMOS SMD Ultra™ Si549 71.135 MHz CMOS
549AAAA001372ACG Skyworks有源晶振 XTAL OSC XO 7.0000MHZ LVPECL Ultra™ Si549 7 MHz LVPECL
549BCAA000133ACG Skyworks有源晶振 XTAL OSC XO 500.0000MHZ LVDS Ultra™ Si549 500 MHz LVDS
549BCCB001125ACG Skyworks有源晶振 XTAL OSC XO 156.2500MHZ LVDS Ultra™ Si549 156.25 MHz LVDS
549ACAA000111ACG Skyworks有源晶振 XTAL OSC XO 25.0000MHZ LVPECL Ultra™ Si549 25 MHz LVPECL
549DAAB001963BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 304.125 MHz CML
549BCCB002127ACGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 200 MHz LVDS
549CAAC000385BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 10 MHz CMOS
549AAAA000426ACGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 145 MHz LVPECL
549CAAC000385BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 10 MHz CMOS
549CBAC000508ACGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 25 MHz CMOS
549DAAA000485BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 625 MHz CML
549BCCB002128ACGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 200 MHz LVDS
549BAAA000798BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 1 MHz LVDS
549BAAC000111BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 25 MHz LVDS
549GAAA000956BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 6.78 MHz CMOS
549BAAC000115BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 125 MHz LVDS
549ABAB000115BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 125 MHz LVPECL
549BCAA000131BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 120 MHz LVDS
549CCAC002099BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 1 MHz CMOS
549AAAA000112BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 10 MHz LVPECL
549CAAC000306BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 22.5792 MHz CMOS
549BBAA000368BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 122.88 MHz LVDS
549BAAB000544BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 156.25 MHz LVDS
549ABAA000131BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 120 MHz LVPECL
549BCAC000177BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 297 MHz LVDS
549BAAB000118ACGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 156.25 MHz LVDS
549BAAB001623BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 156.25 MHz LVDS
549BACA000420BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 644.53125 MHz LVDS
549BACA001937ACGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 125 MHz LVDS
549BCAC000118BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 156.25 MHz LVDS
549CABC000121BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 100 MHz CMOS
549CAAA000112ACGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 10 MHz CMOS
549BABC002152BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 21.3333333 MHz LVDS
549CAAC000306BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 22.5792 MHz CMOS
549BAAC000115BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 125 MHz LVDS
549BCCB002129ACGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 199 MHz LVDS
549CAAA000112BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 10 MHz CMOS
549GCDC002122ACGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 71.135 MHz CMOS
549DACB001619ACGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 156.25 MHz CML
549AAAA000112BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 10 MHz LVPECL
549ABAA000112BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 10 MHz LVPECL
549BACB000148ACGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 24.576 MHz LVDS
549GCAC000111BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 25 MHz CMOS
549CBAC000112BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 10 MHz CMOS
549BACA000281BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 840 MHz LVDS
549BAAC000111BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 25 MHz LVDS
549GAAA000956BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 6.78 MHz CMOS
549AAAA001372ACGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 7 MHz LVPECL
549BCAA000133ACGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 500 MHz LVDS
549BABC002152BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 21.3333333 MHz LVDS
549CAAC001444BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 38.4 MHz CMOS
549BBAA000313BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 300 MHz LVDS
549AAAA000118BCG Skyworks有源晶振 OSCILLATOR SMD晶振 Ultra™ Si549 156.25 MHz LVPECL
549BAAB000212BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 10 MHz LVDS
549CCAC000141ACGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 56.32 MHz CMOS
549BCAA000131BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 120 MHz LVDS
549BAAA000115BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 125 MHz LVDS
549AAAA000118BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 156.25 MHz LVPECL
549ACAA000112BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 10 MHz LVPECL
549BAAB001269BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 156.25 MHz LVDS
549BCAC000177BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 297 MHz LVDS
549BAAA001968ACGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 1.2 GHz LVDS
549CAAC000148BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 24.576 MHz CMOS
549BAAC001741ACGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 70.656 MHz LVDS
549ACAB000118BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 156.25 MHz LVPECL
549ACAA000112ACGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 10 MHz LVPECL
549BCAA000111BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 25 MHz LVDS
549BCAA000121BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 100 MHz LVDS
549BCCB001125ACGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 156.25 MHz LVDS
549BACC000520BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 156.25 MHz LVDS
549BAAC000544BCG Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 156.25 MHz LVDS
549ACAA000118BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 156.25 MHz LVPECL
549AADA000112BCGR Skyworks有源晶振 OSCILLATOR SMD Ultra™ Si549 10 MHz LVPECL
